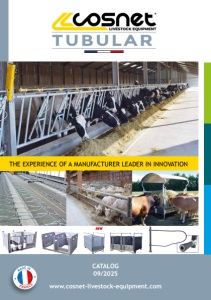

TUBULAR LIVESTOCK EQUIPMENT THE EXPERIENCE OF A MANUFACTURER LEADER IN INNOVATION www.cosnet-elevage.fr CATALOG 09/2022 MADE IN FRANCE Check out our videos on our chanel : Cosnet S.A.S.
www.cosnet-elevage.fr COMPANY PRESENTATION TUBULAR LIVESTOCK EQUIPMENT Your livestock equipment is designed, developed and MADE IN FRANCE A DEALER NETWORK ALL OVER THE WORLD The French family-owned group Cosnet Industries employs around 300 employees over 14,5 hectares of industrial facility. It gathers metallurgy (SAS Cosnet and SAS Pasdelou), plastics (SAS Polymoule-La Gée) and galvanization (SAS Galva 72). Located at the heart of Europe’s main livestock breeding region, the French western part, its products are used by breeders living in a more and more competitive market. The Cosnet Industries group is a leader in the market for over 40 years thanks to Research and Development as well as most advanced production assets. In order to meet the needs, Cosnet Industries keeps on innovating and sets high standards for its products quality. Cosnet Livestock Equipment is a SAS Cosnet brand which divides its activity into 2 divisions: “Cosnet Livestock Equipment” gathering the tubular equipment for livestock buildings & pasture and “Cosnet Agriculture” for its machinery. Founded in 1979, SAS Cosnet is specialized in metallurgy, using most advanced transformation processes thanks to its laser boiler-making and metalwork technology. Focused on the livestock and agricultural equipment, the company is a market reference. With many efficient machines for tube cutting and bending, it can quickly adapt the catalog’s product range. All the company’s know-how merge to manufacture sub-assemblies, handcrafted or more often with the help of the important robot fleet. In order to answer the end-users needs, SAS Cosnet associates with the other Cosnet group industries thus bring together three know-hows: metallurgy, plastics and hot galvanization. This know-how combination offers a better Cosnet ranges optimization and allow a faster development. Since its creation, the company never stopped its evolution and its investments in different production tools but also in Research and Development. SAS Cosnet often files patents within its market in order to propose the latest technologies. The company’s constant search for innovation allows to answer the market needs and to always guarantee the respect of animal Welfare. Cosnet products are sold all over the world through a network of dealers, specialized in the livestock equipment business. SAS Cosnet sets itself in an eco-responsible approach and is committed to sustainable development. Its products are galvanized by Galva 72, one of Europe’s state-of-the-art group’s factory, built to avoid any pollutant waste. Other practical actions are taken from production to shipping. For example, optimized electricity and gas consumption, recycling of wood, paper, ink cartridges, plastics residue, . LIVESTOCK EQUIPMENT Cosnet Livestock Equipment is a Cosnet Industries brand, around 300 employees over 14,5 hectares state-ofthe-art industrial facility with integrated metallurgy, galvanization and plastics factories. Group brands and factories MADE IN FRANCE “COSNET LIVESTOCK EQUIPMENT”, A COSNET INDUSTRIES GROUP BRAND Working for you for more than 40 years ! New factory 15.000m² extension, in progress.
www.cosnet-elevage.fr MADE IN FRANCE - 3 - CONTENTS Year 2022 2023 TUBULAR LIVESTOCK EQUIPMENT A PERFORMING FRENCH INDUSTRY 02 PASTURE EQUIPMENT 04 - 21 Metal hay racks on feet 4 Creep Feeders 10 Gates, field gates and service gates 12 Panels and Mobiparcs 16 Feed troughs 18 LIVESTOCK BUILDING FIT-OUT FOR CALVES 22 - 35 Individual calf pens 22 Group calf pen 28 LIVESTOCK BUILDING FIT-OUT FOR CATTLE 36 - 80 Headlock panels 36 Feed panels 48 Experimental Cosnet farm 52 Posts, “Easyprotec” sleeves and mounting accessories 53 Barn Gates and Panel H.1,15m 60 Barn Gates and Panel H.0,79m 64 Cow passages equipment and corridor 65 Finger gates 66 Lifting barrier 67 Stall hay racks 68 Caesarean stall, unit & blocking panel 68 Gates, “Securipass” doors and drinkers protection 70 Cubicles installation advices 71 Cubicles: on-feet 72 Cubicles: free-standing 73 Cubicles: on post – adjustable 74 Mounting accessories for cubicles on-feet & free-standing 76 Mounting accessories for cubicles on posts 77 Wither bar for cubicles on-feet, free-standing and on posts 78 Advance stop system for cubicle rows 79 Accessories for cubicles, rail separator and brisket board 80 Patented PATENTED We file patents on our products to protect the innovation that will serve your passion. Plus product PRODUCT Gives the key benefits of the product. New NEW Latest innovations to meet your expectations.
www.cosnet-elevage.fr - 4 - Year 2022 2023 TUBULAR LIVESTOCK EQUIPMENT METAL HAY RACKS ON FEET SINGLE METAL HAY RACKS These new-generation single hay racks are designed to open on three sides: two sides and the side opposite the hitch (excluding RTT and RTE with a gate opposite the hitch). Their structure is hot-dip galvanised after assembly. They are factory fitted with: - bottom sheets reinforced by two cones to center round bales, with the ends drilled with several holes to evacuate moisture, - ‘optimum’ roof, with a wide curve to improve the installation of large hay bales and a larger covered surface to better protect them from the rain, - the height of the roof and pads can be adjusted by through bolts, - folding tow bar (except RTT, U bar using the five rails), - monoblock hitch panel to reduce assembly time and contribute to the structure’s strength. These hay racks are perfect for the distribution of round fodder bales in pastures. 1 RTT DROP PANEL HAY RACK Anti-waste. Excellent value for money. Suitable for dairy cattle. PRODUCT The drop panel hay rack is fitted with: - 2 drop panels to avoid waste, - wither bars preventing animals from accessing the interior of the hay racks on the drop panel side. Ø 25 mm bars mechanically welded after fitting in the lower and upper tubes for added strength. 2 m roofing. Designed for hornless herds. Delivered in kit. Type : Drop panels Material : Galvanised steel Model Number of feed spaces Length m Width m Net weight kg Code Unit € Ex. VAT Packing Dealer RTT - 2 1.80 300 112 11 01 1 2 3 RTF TOMBSTONE HAY RACK Reinforced tombstones. Ideal for beef cattle, suitable for horned cattle. PRODUCT The tombstone panel hay rack is fitted with: - 4 full-access tombstone panels with notches on Ø 60.3 mm side rails, - 2.25 m roofing. Designed for horned or hornless herds. Delivered in kit. Type : Tombstone panels Material : Galvanised steel Model Number of feed spaces Length m Width m Net weight kg Code Unit € Ex. VAT Packing Dealer RTF 12 2 2 344 112 11 03 2 RTLS FEED PANEL HAY RACK The feed panel hay rack is fitted with: - 4 reinforced feed panels assembled with notches on the Ø 60.3 mm side rails, connected to an upper bar, - 2.25 m roofing. Designed for horned or hornless herds. Delivered in kit. Type : Feed panels Material : Galvanised steel Model Number of feed spaces Length m Width m Net weight kg Code Unit € Ex. VAT Packing Dealer RTLS 12 2 2 353 112 11 04 3 page 7 Loading and packing of hay rack page 7 options
www.cosnet-elevage.fr MADE IN FRANCE - 5 - Year 2022 2023 TUBULAR LIVESTOCK EQUIPMENT METAL HAY RACKS ON FEET 4 Model shown with the hitch protection kit option and the special roof for equines. 6 STRAIGHT RTE PANEL HAY RACK "SPECIAL EQUINES" The ‘equine’ RTE panel hay rack allows the distribution of hay in round bales and small square bales for ten horses. The RTE hay rack is fitted with: - 4 reinforced panels assembled with notches in a Ø 60.3 mm side rail frame with high straight feed ports. - 2.25 m roofing. Delivered in kit. Type : Horse neck panels Material : Galvanised steel Model Number of feed spaces Length m Width m Net weight kg Code Unit € Ex. VAT Packing Dealer RTE 20 2 2 350 112 11 23 6 RTC II SELF-LOCKING HEADLOCK HAY RACK Patented elastic spring system. Fitted with quick release polymer tabs and an automatic handle. "Comfort SR self-locking headlock" PRODUCT The RTC II hay rack is fitted with: - 4 headlock panels using ‘comfort SR’ stall headlock panel technology, - anti-choke system, - patented elastic spring system, - quick release polymer tabs and automatic handle, - 2.25 m roofing. Designed for hornless herds. Delivered in kit. Type : ‘’Comfort SR’’ self-locking headlock Material : Galvanised steel Model Number of feed spaces Length m Width m Net weight kg Code Unit € Ex. VAT Packing Dealer RTC II 12 2 2 470 112 11 06 4 5 RTO DIAGONAL PANEL HAY RACK The RTO hay rack is fitted with: - 4 reinforced diagonal panels assembled with notches in a Ø 60.3 mm side rail frame with high straight feed ports; - 2.25 m roofing. Designed for horned or hornless herds. Delivered in kit. Type : Diagonal panels Material : Galvanised steel Model Number of feed spaces Length m Width m Net weight kg Code Unit € Ex. VAT Packing Dealer RTO 12 2 2 340 112 11 21 5 Reinforced square 60 mm tow bar (thickness 5 mm) (excluding RTT). Very stable and easy to position. Tow bar with reinforced monoblock lift link drawbar. The height of the skishaped feet can be adjusted by through bolts. Reinforced bottom with bale centring cone and rainwater drain holes. Technical characteristics of hay rack PASTURE EQUIPMENT
www.cosnet-elevage.fr - 6 - Year 2022 2023 TUBULAR LIVESTOCK EQUIPMENT METAL HAY RACKS ON FEET DOUBLE METAL HAY RACKS Three-side opening. Factory-fitted bottom reinforcement. PRODUCT Three-side opening. Factory-fitted bottom reinforcement. These new-generation double hay racks are designed to open on three sides: the two wide sides and the side opposite the hitch. With a total length of 3 m, these double hay racks are factory fitted with two Ø 60.3 mm bottom reinforcement bars (thickness 3.2 mm). Their structure is hot-dip galvanised after assembly. Their design, incorporating four main 3 mm thick uprights, is very robust. They are factory fitted with: - bottom sheets reinforced by two cones to centre round bales. Ends drilled with several holes to evacuate moisture. - ‘optimum’ roof, with a wide curve to improve the installation of large hay bales and a larger covered surface to better protect them from the rain, - the height of the roof and pads can be adjusted by through bolts, - monoblock hitch panel to reduce assembly time and contribute to the structure’s strength, - Folding tow bar, - 2 Ø 60.3 mm bottom reinforcement tubes (thickness 3.2 mm), - Side reinforcement bars and roof protection kit. Double pasture hay racks are suited to the distribution of hay in large square or round bales in fields. A 1 2 3 RDTC II DOUBLE SELF-LOCKING HEADLOCK HAY RACK Patented elastic spring system. Fitted with quick release polymer tabs and an automatic handle. "Comfort SR self-locking headlock" PRODUCT The double self-locking headlock hay rack is fitted with: - 4 headlock panels using ‘comfort SR’ headlock panel technology, - anti-choke system, - patented elastic spring system, - quick release polymer tabs and automatic handle, - 3.10 m roofing. Designed for hornless herds. Delivered in kit . Type : ‘’Comfort SR’’ self-locking headlock Material : Galvanised steel Model Number of feed spaces Length m Width m Net weight kg Code Unit € Ex. VAT Packing Dealer RDTC II 14 3 2 620 112 10 05 3 RDTLS II DOUBLE FEED PANEL HAY RACK The double feed panel hay rack is fitted with: - 4 reinforced feed panels assembled with notches on the Ø 60.3 mm side rails, connected to an upper bar, - 3.10 m roofing. Designed for horned or hornless herds. Delivered in kit. Type : Feed panels Material : Galvanised steel Model Number of feed spaces Length m Width m Net weight kg Code Unit € Ex. VAT Packing Dealer RDTLS II 14 3 2 480 112 10 03 2 RDTF II DOUBLE TOMBSTONE HAY RACK 3.10 m ‘optimum’ roof. Reinforced tombstones. PRODUCT The double tombstone hay rack is fitted with: - 4 full-access tombstone panels with notches on Ø 60.3 mm side rails, - 3.10 m roofing. Designed for horned or hornless herds. Delivered in kit. Type : Tombstone panels Material : Galvanised steel Model Number of feed spaces Length m Width m Net weight kg Code Unit € Ex. VAT Packing Dealer RDTF II 14 3 2 467 112 10 01 1 A page 7 options
www.cosnet-elevage.fr MADE IN FRANCE - 7 - Year 2022 2023 TUBULAR LIVESTOCK EQUIPMENT PASTURE EQUIPMENT OPTIONS METAL HAY RACKS ON FEET Hay rack Length. m Width. m Height. (m) for stacked by 4 6 7 8 RTT 2.20 2.05 1.65 2.30 2.65 3.00 RTF 2.25 1.60 1.15 1.75 1.95 2.30 RTLS 2.25 1.65 1.55 2.25 2.75 - RTC II 2.25 1.60 1.65 2.50 - - RTO 2.25 1.60 1.50 2.25 2.63 3.00 RTE 2.25 1.60 1.50 2.25 2.63 3.00 RDTF 3.10 1.60 2.10 3.15 - - RDTLS 3.10 1.60 2.10 3.15 - - RDTC II 3.10 1.60 2.10 3.15 - - RC 2.30 1.20 - 2.65 - - RDC 2.55 1.20 2.35 - - - REINFORCEMENT FOR THE BOTTOM OF A SINGLE METAL HAY RACK During assembly, two reinforcement bars fit into the ribs at the bottom of the hay rack’s feed trough. They rest on their front and rear ends. These hay rack bottom reinforcement bars are required for heavy fodder, such as wrapped hay. Only compatible with 2 x 2 m hay racks. Material : Galvanised steel Diameter mm Thickness mm Length m Net weight kg Code Unit € Ex. VAT Packing Dealer 60.3 3.2 1.89 9.2 112 11 46 GATE PANEL FOR METAL HAY RACK Model Type Number of feed spaces Length m Net weight kg Code Unit € Ex. VAT Packing Dealer RTO Diagonal panel 3 1.83 32 115 05 53 RTLS Feed panel 3 1.83 33 115 05 48 RTF Tombstone panel 3 1.83 32 115 05 47 RTC II Comfort SR headlock panel 3 1.83 45 115 05 43 RDTLS II Feed panel 4 2.84 48 115 05 52 RDTF II Tombstone panel 4 2.84 43 115 05 46 RDTC II Comfort SR headlock panel 4 2.84 87.50 115 05 42 Loading and packing hay racks (round or on feet) H. L. W. ROOF PROTECTION KIT FOR METAL HAY RACK Protective bars that fit around the ends of the metal sheet roof. Protects animals from possible injury to the head. For metal pasture hay rack. Material : Galvanised steel Model Net weight Code Unit € Ex. VAT Packing Dealer RDTF II, RDTC II, RDTLS II 30 112 11 45 RTLS, RTF, RTO, RTC II, RTE 28 112 11 43 RTT 25 112 11 41 HITCH PROTECTION KIT FOR METAL HAY RACK Protects animals from possible injury when towing. Model Net weight kg Code Unit € Ex. VAT Packing Dealer RTT/RTF/RTC/RTO/RTLS/ RTE/RDTF II/RDTC II/RDTLS II 2.2 112 11 35 Our hay racks on feet are packed by unit in order to facilitate the delivery to the end customer. They are packaged as stacks to improve transport and storage for our dealers.
www.cosnet-elevage.fr - 8 - Year 2022 2023 TUBULAR LIVESTOCK EQUIPMENT ROUND METAL HAY RACKS Reinforced tombstones. PRODUCT Round and double round pasture hay racks are easy to use and cost effective. - hot-dip galvanised after asembly, - reinforced tombstones crossing the chassis down to the ground with central reinforcement assembled by notching to the installation on masonry, Ø 48,3 mm tube frame, - filled from the top or by opening one of the panels. ROUND RC HAY RACK Has a fixed 3-point hitch made out of thick laser-cut metal sheet. Designed for horned or hornless herds. Options : Hitch protection kit (112 11 37), roof (112 11 13) Material : Galvanised steel Type : tombstone Number of feed spaces Diameter m Net weight kg Code Unit € Ex. VAT Packing Dealer 12 2.30 192 112 11 11 DOUBLE ROUND RDC HAY RACK Designed for horned or hornless herds. Fitted with eight squaring pins which fasten onto the bolts. In some cases, this system prevents the hay rack from folding onto itself. Delivered without hitch. Type : tombstone Material : Galvanised steel Number of feed spaces Length m Width m Net weight kg Code Unit € Ex. VAT Packing Dealer 16 3.55 2.05 246 112 11 12 ROOF FOR ROUND RC HAY RACK Roof height can be adjusted and tilts to fill the hay rack with hay. Only compatible with the RC hay rack (112 11 11). Material: Galvanised steel Net weight kg Code Unit € Ex. VAT Packing Dealer 113 112 11 13 GATE PANEL FOR METAL HAY RACK AT DETAIL Model Number of feed spaces Length m Net weight kg Code Unit € Ex. VAT Packing Dealer Straight tombstone panel 3 2.37 48 115 05 51 HITCH PROTECTION KIT FOR METAL HAY RACK Protects animals from possible injury when towing. Model Net weight kg Code Unit € Ex. VAT Packing Dealer RC 2 112 11 37 ROUND METAL HAY RACKS
www.cosnet-elevage.fr MADE IN FRANCE - 9 - Year 2022 2023 TUBULAR LIVESTOCK EQUIPMENT www.cosnet-elevage.fr 1 2 1 2 METAL HAY RACKS ON FEET TUBULAR LIVESTOCK EQUIPMENT DOUBLE HAY RACK ON FEET FOR SHEEP AND GOATS Robust and stable thanks to its 4 ski-shape feet. Option height-adjustable roof. PRODUCT Double hay rack with feed trough included. Allows the distribution of hay in small bales or loose. Monoblock ends for more strength while reducing wastage. Can accommodate a height-adjustable roof as an option. Delivered in kit. Type : Tube panels Material : Galvanised steel Capacity : 240 trough l Length m Width m Net weight kg Code Unit € Ex. VAT Packing Dealer 2.40 1.17 95 PG102 07 62 ROOF PROTECTION FOR METAL HAY RACK Protective bars that fit around the ends of the sheet metal roof. Protects cattle from possible injury to head. For metal field hay rack. Material : Galvanised steel Length m Width m Net weight kg Code Unit € Ex. VAT Packing Dealer 2.80 1.40 40 PG102 07 63 1 PASTURE EQUIPMENT
www.cosnet-elevage.fr - 10 - Year 2022 2023 TUBULAR LIVESTOCK EQUIPMENT CREEP FEEDERS "EVOLUTIF" CREEP FEEDERS Adapts to your needs. PRODUCT Hot-dip galvanized structure, delivered as a kit , quick assembly with screws: - hopper with 60.3 mm diameter tube base ensures perfect stability of the structure , - flow rate is adjusted via a sliding hatch locked by three points (2 m models) and four points (3 m models) and which can be fully closed, - flap tep with secure locking system in closed position, - three-point two bar for empty moving in the field, reinforced by a very thick screwed plate. (To be equipped by driving plates for use on public roads with the 3 m model). The capacity of "Evolutif" feeders can be adjusted according to the increasing feed requirements of cattle. Their storage capacity can be increased through the addition of one or two raising extensions. They are also designed to receive selective entry tilting pen to feed calves. Use without pen for large cattle. 3-point hitch. Reinforced by a thick bolted plate. Tilting roof with secure locking system in closed position. 3 1 2 PEN FOR "EVOLUTIF" FEEDER Tilting PRODUCT This tilting pen features several selective entries on the stable front, the widths of which can be adjusted, and 42.4 mm diameter 5-rail side barriers. It is fitted with ski feet for moving around the field when empty. Rigid fastening of the front selective barrier attached to the side panels. Material : Galvanised steel For model Number of feed spaces Length m Width m Height m Net weight kg Code Unit € Ex. VAT Packing Dealer Scalable 2 m feeder 3 2 3.10 1.35 92 112 05 23 Scalable 3 m feeder 5 3,10 2 1.35 111 112 05 09 2 5 RAISING EXTENSION FOR "EVOLUTIF" FEEDER Raising extensions for scalable feeders increase cattle feeder capacity. 1.000 and 1.500 l "Evolutif" feeders can be fitted with an extra raising extension for a respective total capacity of 1.450 l and 2.000 litres. Material : Galvanised steel Width : 0.76 m Height : 0.27 m Type For model Capacity l Length m Net weight kg Code Unit € Ex. VAT Packing Dealer 350 PLUS raising extension Scalable 2 m feeder 350 1.87 33 112 05 27 500 PLUS raising extension Scalable 3 m feeder 500 2.80 44 112 05 15 3 6 "EVOLUTIF" 2 M FEEDER The 750 l model is delivered in one package. The 1.100 l model is delivered in two packages (the feeder and one raising extension). Options : raising extension (1120527) and pen (1120523) Material : Galvanised steel Capacity l Length m Width m Height m Net weight kg Code Unit € Ex. VAT Packing Dealer 750 2 1.42 1.35 252 112 05 21 1 100 2 1.42 1.35 252 112 05 20 Adaptive feeder from 1.100 to 1.450 liters with the addition of a 350 PLUS raising extension. PRODUCT 1 "EVOLUTIF" 3 M FEEDER The 1.000 l model is delivered in one package. The 1.500 l model is delivered in two packages (the feeder and one raising extension). Options : raising extension (1120515) and pen (1120509) Material : Galvanised steel Capacity l Length m Width m Height m Net weight kg Code Unit € Ex. VAT Packing Dealer 1 000 2.95 1.42 1.35 310 112 05 07 1 500 2.95 1.42 1.35 310 112 05 06 Adaptive from 1.500 to 2.000 liters with the addition of a 500 PLUS raising extension. PRODUCT 4 750 L Model 1000 L Model Model above = Code 112 05 21 + Code 112 05 27 + Code 112 05 23 Model above = Code 112 05 07 + Code 112 05 15 + Code 112 05 09 PATENTED 1 + 3 = Code 112 05 20 4 + 6 = Code 112 05 06 5 6 4
www.cosnet-elevage.fr MADE IN FRANCE - 11 - Year 2022 2023 TUBULAR LIVESTOCK EQUIPMENT CREEP FEEDERS PASTURE EQUIPMENT 750 L MONOBLOCK CALF FEEDER The 750 l monoblock calf feeder features a mechanically welded and hot galvanised tank. This design saves time during assembly, with good overall rigidity. Characteristics of the 750 l monoblock calf feeder: - adjustment of each ‘ski’ type base conferring excellent stability, - flow rate is adjusted via asliding hatch which can be fully closed, - roof with large overhang on slides with opening on the side chosen for filling. Supplied with monoblock tank, feet and roof in kit. Material : Galvanised steel Length m Width m Height m Capacity l Net weight kg Code Unit € Ex. VAT Packing Dealer 2.00 1.15 1.68 750 188 112 05 01 Quick assembly PRODUCT PEN FOR MONOBLOCK FEEDER Pen formed by two Ø 42.4 mm five-rail panels et one Ø 42 mm front panel with three selective entries the widths of which can be adjusted. Quick and safe pen closing by folding the barriers onto the feeder. Delivered with two squaring flat brackets and two ground anchoring stakes. Material : Galvanised steel Number of feed spaces Length m Width m Height m Net weight kg Code Unit € Ex. VAT Packing Dealer 3 2 2.10 1.68 95 112 05 05 220 L CALF FEEDER TO HANG ON A FENCE Adjustable feed flow rate hatch. PRODUCT Ideal for feeding young cattle in stalls. - Tank with hooks to fasten on Ø 60,3 mm stall fences with 4 or 5 rails. - Flow rate is adjusted via a sliding hatch which can be fully closed. - Flap cover. Galvanized structure delivered as a kit, quick assembly with screws. Material : Galvanised steel Length m Width m Height m Capacity l Net weight kg Code Unit € Ex. VAT Packing Dealer 1.23 0.55 0.65 220 57 112 05 17 NEW 220 L CALF HAY RACK TO HANG ON A FENCE Calf hay rack which can be used indoors and outdoors thanks to its cover which protects the hay from the rain. Can be hooked on 4 or 5-rail stall barriers (Ø 60.3 mm) in calf foddering areas. Material : galvanised steel Length m Width m Height m Capacity l Net weight kg Code Unit € Ex. VAT Packing Dealer 1.23 0.55 0.65 220 55 112 05 19 Code 112 05 01 + Code 112 05 05
www.cosnet-elevage.fr - 12 - Year 2022 2023 TUBULAR LIVESTOCK EQUIPMENT Ø 42.4 MM FIELD GATES AND PANELS EXTENDABLE Ø 42.4 MM 5-RAIL FIELD GATES AND PANELS Characteristics : - Hot-dip galvanised after assembly, - 50 x 50 mm thickness 2 mm, front and rear uprights, Rear section: - 5 diam. 42.4 mm cross rails with locks on two rails through cage bolts and nuts, - Ø 42.4 mm spacers with round notches, - Rapid fastening and adjustment thanks to a flat bracket on the top and a threaded eye bolt in a sleeve on the lower part . Front section: - 5 diam. 34 mm cross rails, 94,80 cm Ø 42,4 mm 50 mm 50 mm Ø 34 mm 115 cm Fastening flat bracket stamped on the top section. Assembly of Ø 42 mm spacers with round notches. Locks on two rails with a cage bolt and nut. Top section of our front ends closed by a metal mounting plate. Hermetic upper section Machining underneath the rails model presented 3 to 4 m Code 112 14 22 Available in various versions : - panel with two fastening flat brackets to screw to the 94.8 cm centre distance, - 1 Ø 20 mm "Easylock" automatic lock, guided in a rail, - 2 Ø 20 mm "Easylock" locks, guided in two rails, - drinker/column opening. - drinker/column opening. Numerous mounting accessories suitable for all arrangements. These field gates and panels can also be used to stable heifers under six months old. PRODUCT Robust and multi-purpose. The single latch rail gate can be converted into a double latch version at any time. EXTENDABLE Ø 42 MM FIELD GATE WITH Ø 34 MM MULTI-PURPOSE FRONT END SINGLE LATCH Factory-fitted with one "Easylock" latch to assemble in one of the rails on the front section of the gate, pre-cut to receive it. Material : Galvanised steel Number of rails : 5 rails Height : 1.15 m Diameter : 42.4/34 mm Length m Number of spacers Net weight kg Code Unit € Ex. VAT Packing Dealer 1.10 to 2 1 43 112 14 18 2 to 3 1 43 112 14 20 3 to 4 1 54 112 14 22 4 to 5 2 66 112 14 24 5 to 6 3 77 112 14 26 6 to 7 3 90 112 14 28 MODEL WITH EASYLOCK SINGLE LATCH New Latch threaded in the rails of the front section of the gate. Safe and without risk of snagging collars.
www.cosnet-elevage.fr MADE IN FRANCE - 13 - Year 2022 2023 TUBULAR LIVESTOCK EQUIPMENT PASTURE EQUIPMENT Ø 42.4 MM FIELD GATES AND PANELS EXTENDABLE Ø 42 MM FIELD PANEL WITH Ø 34 MM MULTI-PURPOSE FRONT END Delivered with 2 plates to screw as standard. Can be used for young dairy cows. Material : Galvanised steel Number of rails : 5 rails Height : 1.15 m Diameter : 42.4/34 mm Length m Number of spacers Net weight kg Code Unit € Ex. VAT Packing Dealer 2 to 3 1 38 112 14 50 3 to 4 1 47 112 14 51 4 to 5 2 58 112 14 52 5 to 6 3 70 112 14 53 5 to 6 3 77 112 14 27 Ø 42 MM FIELD REAR PANEL Only compatible with Ø 34 mm front ends. Material : Galvanised steel Number of rails : 5 rails Height : 1.15 m Diameter : 42.4 mm Length m Number of spacers Net weight kg Code Unit € Ex. VAT Packing Dealer 1.10 to 2 1 13 112 13 18 2 to 3 1 23 112 13 20 3 to 4 1 34 112 13 22 4 to 5 2 46 112 13 24 5 to 6 3 57 112 13 26 6 to 7 3 70 112 13 28 EXTRA "EASYLOCK" AUTOMATIC LATCH Can be assembled on a rail. Safe PRODUCT Ø 20 mm "Easylock" automatic latch with spring and handle. Delivered in a pack. Compatible with extendable Ø 34 mm gate front ends, the multi-purpose Ø 34 mm field barrier front, and the Ø 48.3 mm automatic latch front for stall rail barrier Double latch panel and barrier which can be used to stall young dairy cows. Net weight kg Code Unit € Ex. VAT Packing Dealer 2.5 112 14 37 New Ø 34 MM PASTURE FRONT END DRINKER/COLUMN OPENING Front end designed to leave an opening for a drinker or column. Column opening fastening centre distance: 340 mm. Drinker opening fastening centre distance: 948 mm. Only compatible with Ø 42.4 mm pasture rear gates. Material : Galvanised steel Number of rails : 5 rails Height : 1.15 m Length m Net weight kg Code Unit € Ex. VAT Packing Dealer 1.61 21 112 13 40 MULTI-PURPOSE Ø 34 MM FIELD FRONT END Combined front end designed to receive, as desired: - 1 or 2 "Easylock" (112 14 37) automatic latches to design a field barrier front end. or - 2 fastening flat brackets (112 14 39) to design a pasture panel front end. Double latch panel and barrier which can be used to stall young dairy cows. Material : Galvanised steel Number of rails : 5 rails Height : 1.15 m Diameter : 34 mm Length m Net weight kg Code Unit € Ex. VAT Packing Dealer 1.55 19 112 13 42 FASTENING PLATE FOR PANEL Pair of fastening flat brackets to screw on. Delivered with four bolts and nuts. Compatible with the Ø 34 mm multi-purpose pasture front end and the Ø 42.4 mm extendable front gates. Not compatible with the 6 to 7 m back. Material : Galvanised steel Fastening centre distance : 94.8 mm Net weight kg Code Pair € Ex. VAT Packing Dealer 1 112 14 39 A second fastening point can be installed at the top, representing three in total with the addition of a bracket. Fastening centre distance: 340 mm Hermetic upper part. Fitting system from underneath the bar. Structure designed to fit optional Easylock automatic lockers. Gate post designed to fit optional fastening plates. Gate post designed to fit optional fastening plates. New New New
www.cosnet-elevage.fr - 14 - Year 2022 2023 TUBULAR LIVESTOCK EQUIPMENT Ø 42.4/35 MM FIELD GATES AND SERVICE GATES EXTENDABLE Ø 42.4/35 MM 5-RAIL FIELD GATES AND PANELS Characteristics: - Hot-dip galvanised after assembly, - 50 x 50 mm thickness 2 mm, front and rear uprights, Rear section: - 5diam. 42.4mmcross railswith latches on two rails through cagebolts andnuts, - Ø 42.4 mm spacers with round notches, - Rapid fastening and adjustment thanks to a flat bracket on the top and a threaded eye bolt in a sleeve on the lower part. Front section: - 5 diam. 34 mm cross rails, Available in various versions: - panel with two fastening flat brackets to screw to the 94.8 cm centre distance, - 1 Ø 20 mm "Easylock" automatic latch, guided in a rail, - 2 Ø 20 mm "Easylock" locks, guided in two rails, - drinker/column opening. - drinker/column opening. Numerous mounting accessories suitable for all arrangements. These field gates and panels can also be used to stable heifers under six months old. EXTENDABLE Ø 42/35 MM FIELD GATE WITH Ø 34 MM MULTI-PURPOSE FRONT END SINGLE LATCH Factory-fitted with one "Easylock" latch to assemble in one of the rails on the front section of the gate, pre-cut to receive it. Material : Galvanised steel Number of rails : 5 rails Height : 1.15 m Diameter : 42.4/35 mm Number of locks : 1 Length m Number of spacers Net weight kg Code Unit € Ex. VAT Packing Dealer 2 to 3 1 38 112 14 50 3 to 4 1 47 112 14 51 4 to 5 2 58 112 14 52 5 to 6 3 70 112 14 53 EXTENDABLE Ø 42/35 MM FIELD PANEL WITH Ø 34 MM MULTI-PURPOSE FRONT END Factory-fitted with two fastening flat brackets to screw on the front upright of the panel at a fastening centre distance of 94.8 cm. Material : Galvanised steel Number of rails : 5 rails Height : 1.15 m Diameter : 42.4/35 mm Length m Number of spacers Net weight kg Code Unit € Ex. VAT Packing Dealer 2 to 3 1 38 112 14 60 3 to 4 1 47 112 14 61 4 to 5 2 58 112 14 62 5 to 6 3 70 112 14 63 New New New Latch threaded in the rails of the front section of the gate. Safe and without risk of snagging collars. Robust and multi-purpose. The single latch rail gate can be converted into a double latch version at any time. PRODUCT
www.cosnet-elevage.fr MADE IN FRANCE - 15 - Year 2022 2023 TUBULAR LIVESTOCK EQUIPMENT EXTENDABLE FIELD GATE Characteristics Rear section: - 2 Ø 42.4 mm top and bottom rails, - 3 Ø 35 mm intermediary rails, - Locks on two rails with a cage bolt and nut. - 1 Ø 42.4 mm upright, - Ø 35 mm spacers with round notches. - 2 Ø 22 mm threaded eye bolts with two bolts at the top and bottom. Front section: - 2 Ø 35 mm top and bottom rails, - 3 Ø 27 mm inner rails, - 1 Ø 35 mm upright fitted with a Ø 14 mm spring lock. FIXED FIELD GATE 94,80 cm 2 Ø 22 mm threaded eye bolts with two bolts at the top and bottom. 2 rails locked by a bolt in a retaining nut. Assembly of Ø 42 mm spacers with round notches. Ø 42,4 mm Ø 35 mm Ø 27 mm Ø 35 mm 1 Ø 14 mm spring lock. Ø 42,4 mm Features : - 2 Ø 42.4 mm top and bottom rails, - 3 Ø 35 mm intermediary rails, - 2 Ø 42.4 mm uprights, - Ø 35 mm spacers with round notches, - 2 Ø 42.4 mm top and bottom rails. Material : Galvanised steel Type : fixed Number of rails : 5 rails Height : 1.15 m Diameter : 42.4/35 mm Number of locks : 1 Length m Number of spacers Net weight kg Code Unit € Ex. VAT Packing Dealer 3 1 26 112 13 59 4 1 37 112 13 61 5 2 42 112 13 63 Material : Galvanised steel Type : Extendable Shape : tube Number of rails : 5 rails Diameter : 42.4/35 mm Number of locks : 1 Length m Number of spacers Net weight kg Code Unit € Ex. VAT Packing Dealer 2 to 3 1 34 112 13 67 3 to 4 1 38 112 13 69 4 to 5 2 44 112 13 71 5 to 6 3 55 112 13 73 Ø 42.4/35 MM FIELD GATES Simple and economical field gates. Hot-dip galvanised after assembly. Excellent value for money. PRODUCT FIXED SEMI-MESHED FIELD GATE Features: - 2 Ø 42.4 mm top and bottom rails. - 3 Ø 35 mm intermediary rails. - 2 Ø 42.4 mm uprights - 2 bottom spaces meshed in 50x50 4 mm mesh. Material : Galvanised steel Type : fixed semi-meshed Number of rails : 5 rails Height : 1.15 m Diameter : 42.4/35 mm Number of locks : 1 Length m Number of spacers Net weight kg Code Unit € Ex. VAT Packing Dealer 3 1 33 112 13 51 4 1 43 112 13 53 5 2 54 112 13 55 SERVICE GATE Hot-dip galvanised steel gate. Fitted with: - 1 Ø 14 mm spring lock protruding 86 mm from the gate - 2 wall fastening corner brackets which also serve as a pin, attached to the gate with Ø 12 mm screws. Material : Galvanised steel Height : 1.15 m Length : 0.90 m Diameter : 35 mm Number of rails : 4 rails Number of locks : 1 Model Net weight kg Code Unit € Ex. VAT Packing Dealer Standard 8.5 112 13 80 meshed 9.5 112 13 81 Ø 42.4/35 MM FIELD GATES AND SERVICE GATES PASTURE EQUIPMENT
www.cosnet-elevage.fr - 16 - Year 2022 2023 TUBULAR LIVESTOCK EQUIPMENT PANELS AND GATE PANELS Lightweight and easy to handle. Can be moved as required. Available in simple panels and gate panels. Each panel is fitted, at one end, with top and bottom flat brackets to lock a second panel with factory-fitted chains. ADJUSTABLE Ø 42 MM LINK HOOP PANEL The link hoop panel has the same characteristics as standard panels. Robust design using Ø 42.4 mm tubes. Width adjustable between 0.75 and 1.20 m. Used to maintain the spacing of lines of panels on either side of a corridor while strengt hening the structure. Material : galvanised steel Height : 2.10 m Length : 0.75 m Code Unit € Ex. VAT Packing Dealer PG100 13 09 FASTENING FOR PANEL ASSEMBLY Used to join panels. Safe assembly of two or three Ø 35 mm tubes. Delivered with screws. Material : galvanised steel Fastening Code Pair € Ex. VAT Packing Dealer for 2 tubes PG100 13 21 for 3 tubes PG100 13 23 3 4 3 4 PANELS AND GATE PANELS Laser-cut flat bracket system to connect the panels with chains. Top section with straight finish obstructed by a black plastic perga plug. Assembly of Ø 35 mm tubes with notches to perfectly follow the shape of the tubes to ensure that the structure is rigid and strong. Intermediate reinforcement flat bracket ensures a rigid and robust assembly. 2 1 These panels have the same characteristics as the standard panels. They can therefore easily be incorporated to form an entry panel in handling installations. Ski-shaped feet provide stability and accommodate differences in level when assembled in line. implementation example 6-RAIL (Ø 35 MM) PANEL Delivered with two chains for assembly. Material : galvanised steel Height : 1.60 m Diameter : 35 mm Number of rails : 6 Length m Code Unit € Ex. VAT Packing Dealer 2.40 PG100 13 01 3 PG100 13 03 3.60 PG100 13 05 1 6-RAIL (Ø 35 MM) GATE PANEL These panels have the same characteristics as the standard panels. They can therefore easily be incorporated to form an entry panel in handling installations. Suitable for people and animals. Delivered with two chains for assembly. Material : galvanised steel Height : 2.25 m Number of rails : 6 Number of locks : 1 Length m Code Unit € Ex. VAT Packing Dealer 2.40 PG100 13 11 3 PG100 13 13 3.60 PG100 13 15 2 Lightweight and easy to handle. Can be moved as required. PRODUCT
www.cosnet-elevage.fr MADE IN FRANCE - 17 - Year 2022 2023 TUBULAR LIVESTOCK EQUIPMENT PASTURE EQUIPMENT ROAD SIGNALLING KIT Self-reflective. Approved for road use. PRODUCT Attaches using a system of elastic ties. Features 2 panels with integrated light system. Connection via 11.60 m of agricultural wiring. Height : 43 cm Width : 43 cm Code Unit € Ex. VAT Packing Dealer PG100 11 17 PANEL TRANSPORT SUPPORT Robust design. PRODUCT Fitted with a 3-point towbar on a lift link drawbar. Its structure is a 120 x 60 mm rectangle, and it can accommodate 2.40/3.00 and 3.60 m panels, including panels with gates and link hoop panels. Factory-fitted with a ratchet strap, ensuring that the panels are securely maintained during transport. Ideal for transporting a maximum of 20 panels. On-road transport of lengths of over 2.40 m requires the use of a road signalling kit available as an option. Material : galvanised steel Height : 1.76 m Depth : 1.08 m Width : 1.15 m Code Unit € Ex. VAT Packing Dealer PG100 07 07 38 M MOBIPARC Set ready to use with 38.4 m of panels in a straight line. PRODUCT The 38 M MOBIPARC includes: - 15 panels 2.40 m, - 1 gate panel 2.40 m, - 1 panel transport support. Al lows the design of a pen with a length of 38.4 m. Width : 2.40 m Depth : 1.08 m Height : 2.37 m Material : Galvanised steel Code Pack € Ex. VAT Packing Dealer PGFULLMOBI38 48 M MOBIPARC Set ready for use with 48 m of panels in a straight line. PRODUCT The 48 M MOBIPARC includes: - 19 panels 2.40 m, - 1 gate panel 2.40 m, - 1 panel transport support. Allows the design of a pen with a length of 48 m. Width : 2.40 m Depth : 1.08 m Height : 2.37 m Material : Galvanised steel Code Pack € Ex. VAT Packing Dealer PGFULLMOBI48 MOBIPARCS Example of panel supports with 20 panels of 2.40 m EXTRA CHAINS TO FASTEN PANELS Link chain Ø 4 mm and length 0,60m. Delivered with Ø 6 mm bolts - length 20 mm. Diameter : 4 mm Length : 600 mm Code Pair € Ex. VAT Packing Dealer PG100 13 25 1
www.cosnet-elevage.fr - 18 - Year 2022 2023 TUBULAR LIVESTOCK EQUIPMENT CATTLE FEED TROUGHS REINFORCED PAINTED FEED TROUGHS Feed trough, interior bituminous coating. High-quality coating. PRODUCT - Manufactured from 2 mm sheet steel bent in a single length for greater rigidity, - Angles are notched allowing the ends to be superimposed with a weld bead for more solidity, - Anti-rust protection on the entire trough, - Polyurethane paint applied on exterior pan, - Bituminous coating applied on interior pan, - Very deep trough, Reinforced painted feed t roughs are fitted with: - 2 reinforcing cross bars inside the feed trough, - 4 welded feed linked by cross bars under the feed trough pan up to 5 m and 6 feet for 6 m, - Anti-spillage rim’s width of : • 75 mm for any troughs width from 0.80 to 1.50 m • 55 mm for troughs width 0.60 m - Ø 50 mm galvanised legs for any troughs width from 0.80 to 1.50 m and Ø 42.4 for any troughs width 0.60 m. Adjustable in height in groups of 7 cm by a through bolt to adjust the height or tilt the trough to limit waste, - 4 reinforcing triangular armpits between the foot and the pan to in crease overall stability and solidity - 1 PVC threaded drain through wall plug (Ø 45 mm). Interior coated with a bituminous coating that is very resistant to silage acidity (coating to be applied periodically). REINFORCED PAINTED FEED TROUGH Available in the following widths: 0.60 and 0.80 m. Highly appreciated for its quality, robustness, and durability. Material : Steel Width m Length m Vol. l Min. height cm Max. height cm Depth cm Code Unit € Ex. VAT Packing Dealer 0.60 3 480 55.5 69.5 30 112 01 05 4 640 112 01 09 4.5 720 112 01 11 5 800 112 01 13 6 960 112 01 15 0.80 3 798 67 81 38 112 01 19 4 1,064 112 01 23 4.5 1,197 112 01 25 5 1,335 112 01 27 6 1,595 112 01 29 LARGE WIDTH REINFORCED PAINTED FEED TROUGH Available in the following widths: 1 m, 1.20 m, and 1.50 m. It offers farmers the possibility of removing silage with a front loader. Large width reinforced feed troughs are also fitted with: - 1 central cone reinforcing the bottom and improving silage intake for models of a width of 1.20 and 1.50 m. Material : Steel Width m Length m Vol. l Min. height cm Max. height cm Depth cm Code Unit € Ex. VAT Packing Dealer 1 5 1,688 64.5 78.5 40 112 01 39 6 2,025 112 01 41 1.20 5 2,300 70.5 84.5 44 112 01 51 6 2,800 112 01 53 1.50 5 3,160 74 88 49 112 01 55 6 3,800 112 01 57 NEW: our feed troughs are now manufactured with a polyurethane paint, for even better longevity! New : Polyurethane outter paint. PRODUCT New : Polyurethane outter paint. PRODUCT Reinforced painted feed troughs are available in various widths (Total width): 0.60; 0.80; 1; 1.20, and 1.50 m. They are designed silage and feed for cattle.
www.cosnet-elevage.fr MADE IN FRANCE - 19 - Year 2022 2023 TUBULAR LIVESTOCK EQUIPMENT CATTLE FEED TROUGHS PASTURE EQUIPMENT Choose carefully your troughs Our tips to choose your trough according to the animal typology and its use: - width 0.60 m: for young animals, heifers, grassers, etc, - width 0.80 / 1 m: for adult animal feeder stations, suckling or dairy cows and bull calves - width 1. / 1.20 / 1.50 m: for feed distribution on both sides. Packing and loading of reinforced, standard and eco 0,78 troughs 0,80 / 0,78 and 0,60 m. Ex. Pack of 21 troughs reinforced or standard 21 x Width 0.80 m. Ex. Pack of 24 troughs reinforced or standard 12 x Width 0.80 m. 12 x Width 0.60 m. Ex. Pack of 27 eco troughs 0.78 27 x Width 0.78 m. Possibility to load 24 troughs in a tautliner Ex. Pack of 22 troughs reinforced or standard 18 x Width 0.80 m. 4 x Width 0.60 m. 2,51 m 2,97 m 0,38 m 0,08 m 1,36 m 2,95 m 0,30 m 0,08 m 1,13 m 0,08 m 1,75 m 2,74 m 0,91 m 0,08 m 1 X 9 1 X 9 1 X 3 1 X 9 1 X 9 1 X 4 1 X 9 1 X 6 1 X 6 1 X 3 1,080 m 3,05 m 0,905 m 0,08 m 0,905 m 0,08 m 1 X 9 1 X 9 1 X 9 PACK LENGTH 5 PACK LENGTH 4 M PACK LENGTH 5 M PACK LENGTH 5 M AVAIL. LENGTH 4 M PACK LENGTH 5 M To optimise loads and improve delivery quality, your trough packs must be composed using one of the methods proposed below. The packs can be composed of a mixture of packs of standard painted troughs and standard galvanised troughs. Cosnet reinforced troughs cannot be loaded into the same pack as standard troughs. Remember : - for loading on a truck bed. max available height 3.10 m. (total authorised height 4.50 m.). Possible load length 13.60 m + tolerated overhang of 0.60 m. - for loading on a tautliner. max. available height (under rails): classic = 2.5 m / mega = 2.85 m. Possible load length 13.50 m. FEED PAN FOR REINFORCED OR STANDARD METAL TROUGH Stabilized with UV and frost VIEW FROM THE SIDE fitted inside the metallic COSNET trough Air flow Improves the hygiene and service life of metal troughs PRODUCT Made in polyethylene resin, UV stable,and frost resistant, it is highly acidresistant. It optimises the service life of new metal troughs. Once inserted into the trough, the drain plug should be removed so as to ventilate the space between walls. For standard 5 x 0.80 m painted metal feed troughs, galvanised and reinforced. Length m Width m Height m Code Unit € Ex. VAT Packing Dealer 5 0.80 0.38 112 03 07 Non contractual photo GLYCEROPHTHALIC PAINT High-quality coating. PRODUCT Glycerophthalic paint to be applied on anti-rust protection. Type : Acrylic Capacity kg Color Code Unit € Ex. VAT Packing Dealer 1 Cosnet orange 112 19 01 black 112 19 05 BITUMINOUS COATING Fodder approved. PRODUCT Bituminous coating approved for use inside feed troughs. For a longer service life, this coating needs to be periodically re-applied (depending on the aggressiv eness of the silage). Type : Bituminous coating Color : Black Capacity kg Code Unit € Ex. VAT Packing Dealer 1 112 19 09 5 112 19 11
www.cosnet-elevage.fr - 20 - Year 2022 2023 TUBULAR LIVESTOCK EQUIPMENT STANDARD GALVANISED FEED TROUGH Hot-dip galvanised. PRODUCT Hot-dip galvanisation after manufacture for protection. Material : Galvanised steel Width m Length m Vol. l Min. height cm Max. height cm Depth cm Code Unit € Ex. VAT Packing Dealer 0.60 3 480 58.5 72.5 30 112 02 74 4 640 112 02 76 5 800 112 02 78 6 960 112 02 80 0.80 3 798 65 79 38 112 02 82 4 1,064 112 02 84 5 1,335 112 02 86 6 1,595 112 02 88 STANDARD PAINTED FEED TROUGH Polyurethane paint coating applied on pan interior and exterior. Material : Steel Width m Length m Vol. l Min. height cm Max. height cm Depth cm Code Unit € Ex. VAT Packing Dealer 0.60 3 480 58.5 72.5 30 112 02 42 4 640 112 02 44 5 800 112 02 46 6 960 112 02 48 0.80 3 798 65 79 38 112 02 50 4 1,064 112 02 52 5 1,335 112 02 54 6 1,595 112 02 56 Due to the aggressiveness of the lactic acid naturally present in silage, the zinc coating (Galvanised) can deteriorate. To extend the feed trough’s service life, a bituminous coating (e.g. Blackson food grade) needs to be periodically applied to the inside of the trough STANDARD PAINTED FEED TROUGH WITH BITUMINOUS COATED BOTTOM Polyurethane paint coating applied on pan exterior. Bituminous coating applied on pan interior. Material : Steel Width m Length m Vol. l Min. height cm Max. height cm Depth cm Code Unit € Ex. VAT Packing Dealer 0.60 3 480 58.5 72.5 30 112 02 58 4 640 112 02 60 5 800 112 02 62 6 960 112 02 64 0.80 3 798 65 79 38 112 02 66 4 1,064 112 02 68 5 1,335 112 02 70 6 1,595 112 02 72 STANDARD PAINTED AND GALVANISED FEED TROUGHS - Manufactured from 2 mm sheet steel bent in a single length for greater rigidity, - Angles are notched allowing the ends to be superimposed with a weld bead for more solidity, - Anti-rust protection on the entire trough, - Polyurethane paint applied on pan interior and exterior, - Very deep trough pan, - Base smaller than trough width. Standard feed troughs are fitted with: - 2 reinforcing cross bars inside the feed trough, - 4 feet welded under the tray for troughs up to 5 m and 6 feet for 6 m. Feet connected by reinforcing cross bars. - Anti-spillage rim’s width of : • 75 mm for any troughs width from 0.80 to 1.50 m • 55 mm for troughs width 0.60 m, - Ø 50 mm galvanised legs for any troughs width from 0.80 to 1.50 m and Ø 42.4 for any troughs width 0.60 m. Adjustable in height in groups of 7 cm by a through bolt to adjust the height or tilt the trough to limit waste, - 1 PVC threaded drain through wall plug (Ø 45 mm). CATTLE FEED TROUGHS page 19 Bituminous Coating page 19 Loading page 19 Loading New : Polyurethane outter paint. PRODUCT New : Polyurethane outter paint. PRODUCT NEW: our feed troughs are now manufactured with a polyurethane paint, for even better longevity! Standard painted and galvanised feed troughs are available in two widths: 0.80 and 0.60 m.They are intended for cattle for feed and silage.
www.cosnet-elevage.fr MADE IN FRANCE - 21 - Year 2022 2023 TUBULAR LIVESTOCK EQUIPMENT ECO GALVANISED FEED TROUGH CATTLE FEED TROUGHS ECO PAINTED FEED TROUGH Polyurethane paint coating applied on pan interior and exterior. Material : Steel Width m Length m Vol. l Min. height cm Max. height cm Depth cm Code Unit € Ex. VAT Packing Dealer 0.78 3 580 57.8 64.8 30 112 04 21 4 770 57.8 64.8 30 112 04 23 5 960 57.8 64.8 30 112 04 25 6 1150 57.8 64.8 30 112 04 27 Hot-dip galvanizing after manufacture for protection. Due to the aggressiveness of the lactic acid naturally present in silage, the zinc coating (Galvanised) can deteriorate. To extend the feed trough’s service life, a bituminous coating (e.g. Blackson food grade) needs to be periodically applied to the inside of the trough Material : Galvanised steel Width m Length m Vol. l Min. height cm Max. height cm Depth cm Code Unit € Ex. VAT Packing Dealer 0.78 3 580 57.8 64.8 30 112 04 41 4 770 57.8 64.8 30 112 04 43 5 960 57.8 64.8 30 112 04 45 6 1150 57.8 64.8 30 112 04 47 ECO FEED TROUGHS 0,78 M Manufactured from 2 mm sheet steel bent in a single length for greater rigidity, - Angles are notched allowing the ends to be superimposed with a weld bead for more solidity, - Anti-rust protection on the entire trough, - Polyurethane paint applied on pan interior and exterior, trough depth 30cm, legs welded under tank. Feed troughs fitted with: - 2 reinforcing cross bars inside the feed trough (except 3m/1 cross), - 4 feet welded under the tray for troughs up to 5 m and 6 feet for 6 m. Feet connected by reinforcing cross bars. - 40 mm anti-waste rim, - Ø 50mm galvanised legs and adjustable in height in groups of 7 cm by a through bolt to adjust the height or tilt the trough to limit waste, - 1 PVC threaded drain through wall plug (Ø 45 mm) Eco feed trough 0,78 are designed for dairy and beef cattle, to feed them with forrage of silage. ECO PAINTED FEED TROUGH WITH BITUMINOUS COATED BOTTOM Polyurethane paint coating applied on pan exterior. Bituminous coating applied on pan interior. Material : Steel Width m Length m Vol. l Min. height cm Max. height cm Depth cm Code Unit € Ex. VAT Packing Dealer 0.78 3 580 57.8 64.8 30 112 04 31 4 770 57.8 64.8 30 112 04 33 5 960 57.8 64.8 30 112 04 35 6 1150 57.8 64.8 30 112 04 37 FEED TROUGH FOR SMALL ANIMALS Galvanised troughs for small animals are very robust due to their welded and hot galvanised construction. They are multi-purpose and can be used for all types of animals. They have 60 mm square welded feet. Total height: 220 mm. Total height : 0.22 m Width : 0.33 m Depth : 0.16 m Material : Galvanised steel Length m Code Unit € Ex. VAT Packing Dealer 2.45 112 01 80 3 112 01 81 4 112 01 82 5 112 01 83 NEW: our feed troughs are now manufactured with a polyurethane paint, for even better longevity! Hot-dip galvanised. PRODUCT New : Polyurethane outter paint. PRODUCT New : Polyurethane outter paint. PRODUCT page 19 Loading New PASTURE EQUIPMENT
www.cosnet-elevage.fr - 22 - Year 2022 2023 TUBULAR LIVESTOCK EQUIPMENT HYGIENE PLUS CALF PEN Simple and easy! PRODUCT Recommended for calf raising up to two months. Disassembles in a flash. Modular and multi-purpose. Lightweight and easy to handle. Calf pens designed for total optimisation of hygiene, improving cleaning and disinfection. All components of this calf pen are designed to assemble and form a strong modular structure. Their modularity makes it possible to create individual pens in a row or back to back or even transform everything into group calf pens. They can be speedily disassembled to improve cleaning and disinfection operations by offering the possibility of disinfection by soaking. A calf pen features: - 2 rotomolded polyethylene partitions, avoiding contact between calves under 900 mm from the ground in accordance with European Union and Chamber of Agriculture regulations. Slatted floor part allows liquids and cleaning water to drain. - 4 galvanised metal posts with mounting plate for ground fastening. Offset mounting plate to allow back to back installation of pens. The posts allow the partition to be installed at two different heights according to whether slatted floor is used or not. - 1 reversible left/right stable front with adjustable neck. - 1 reversible left/right rear gate.To ensure the welfare of calves and meet health requirements, we also offer: - a non-slip slatted floor which facilitates the evacuation of droppings. - stainless steel isolation hatches to close the openings in the partitions to avoid any contact between the calves in case of illness. INDIVIDUAL CALF PENS page 29 Accessories Pierced lower part allows liquids and cleaning water to drain. Offset mounting plate to allow back to back installation of pens. Partition for Hygiene Plus calf pens features: - 2 galvanised metal posts, - 1 PE partition. Option : Slatted floor (112 33 09), set of four stainless steel isolation hatches (112 33 19). Compatible with the stable front (112 33 06) and rear gate (112 33 07). Length: 1.90 m Height: 1.18 m Model Material Net weight kg Code Unit € Ex. VAT Packing Dealer Hygiene Plus Polyethylene resin 33 112 33 01 PARTITION FOR HYGIENE PLUS CALF PEN FRONT FOR CALF PEN Adjustable neck opening. Folding bucket holder. PRODUCT Galvanised stable front with double headlock for calf pens with polyethylene partitions and metal calf pens: - opening and closing via spring loaded bolt, - reversible left/right, - height adjustable on the posts of calf pens with polyethylene partitions, Fitted with: - 1 lower section enclosed in sheet metal to limit bedding wastage, - 2 moveable bars with adjustable neck and spring return for optimised securing of calves, - 2 round folding bucket holders to optimise pen space, - 1 milk feed bucket holder in the upper section with anti-head shake lock. Can be used with 17.5 l buckets or standard round buckets available in stores. Material: Galvanised steel Net weight kg Code Unit € Ex. VAT Packing Dealer 14 112 33 06 Disassembles in a flash. Modular and multi-purpose. Lightweight and easy to handle. REAR GATE FOR CALF PEN Automatic spring locker. Height adjustable. PRODUCT Galvanised rear barred gate. Opening and closing via spring loaded bolt. Reversible left/right. Height adjustable on the posts of calf pens with polyethylene partitions. Material: Galvanised steel Net weight kg Code Unit € Ex. VAT Packing Dealer 9 112 33 07 PATENTED
